MEUS Racing New SCX24 Metal Isokinetic Front Rear Axles +5MM Isokinetic 3-Section CVDs With 52° Steering Angle for 1/24 SCX24 Deadbolt C10 JLU Gladiator Bronco.

Key Features

• 1. V2 upgraded version of MEUS Racing SCX24 Isokinetic axles, suitable for Axial 1/24 RC crawler, Axial SCX24 Deadbolt C10 JLU Gladiator Bronco.

• 2. The spherical design differential shell and axle housing are made of aluminum alloy with an anodized surface. The front axle is 83g and the rear axle is 32g.

• 3. Comes with brass steering knuckles and diff cover to increase the weight on the front axle to improve traction, climbing ability, and steering response.

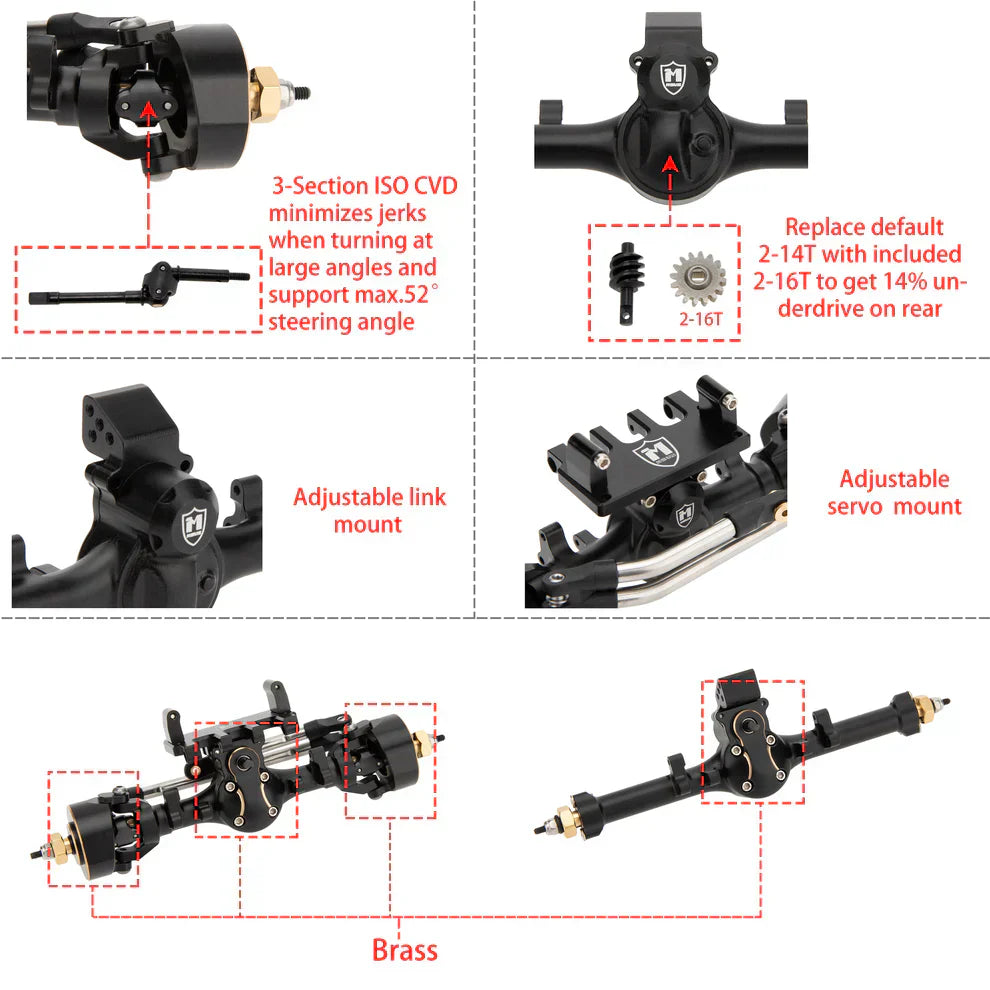

• 4. US patented (Patent No.: US D1,052,393 S) Isokinetic 3-section CVD effectively minimizes the jerks when turning at large angles and supports a max.52° steering angle.

• 5. Front axle equipped with customized thickened 2-14T gears, and the rear axle equipped with a conventional 2-14T gear.

• 6. The rear axle comes with 2-16T gears to get underdrive to increase front wheel speed and prevent the buggy from rolling over when climbing.

• 7. If you want the front wheels to overdrive, please change the differential gear of the front axle to our customized thickened 2-12T.

The Differences Between SCX24 Metal ISO V1 and V2

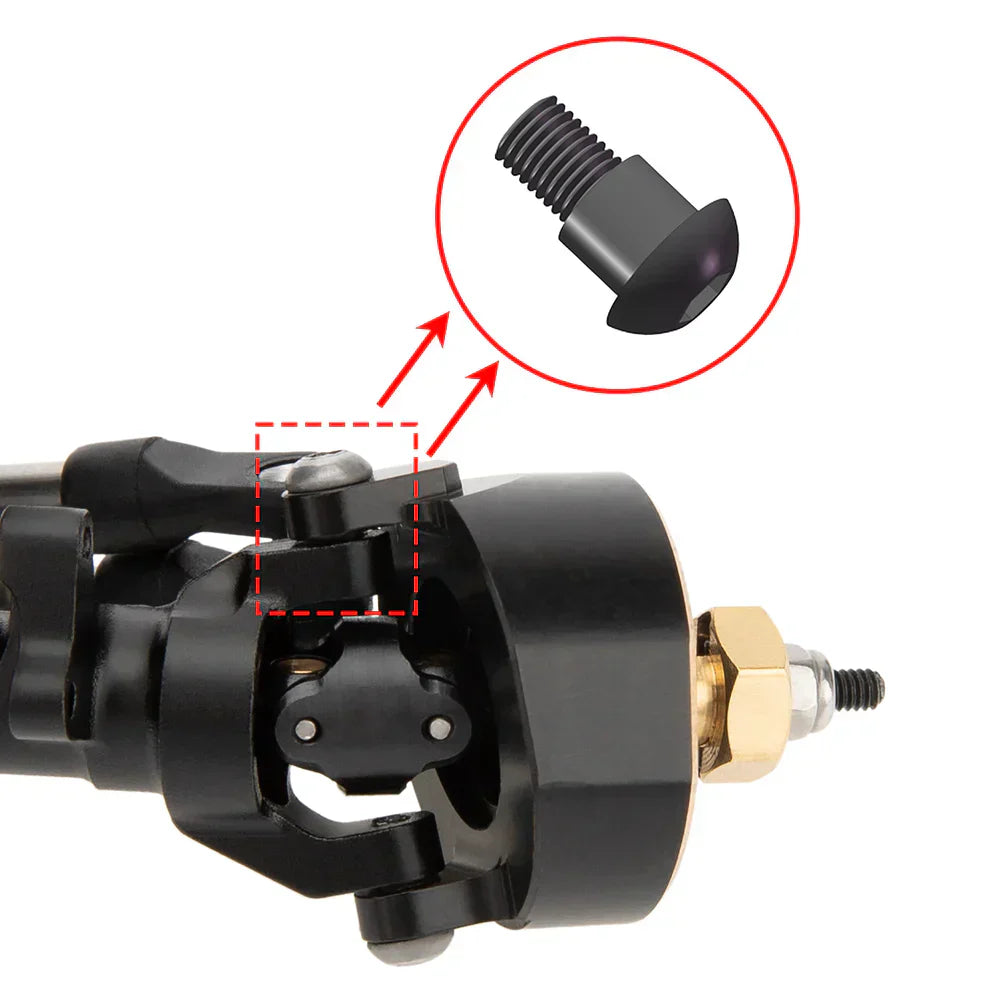

(1) Shoulder screws on steering knuckles to provide better fixment, won't easily fall off. Steering knuckles are not compatible with V1 version.

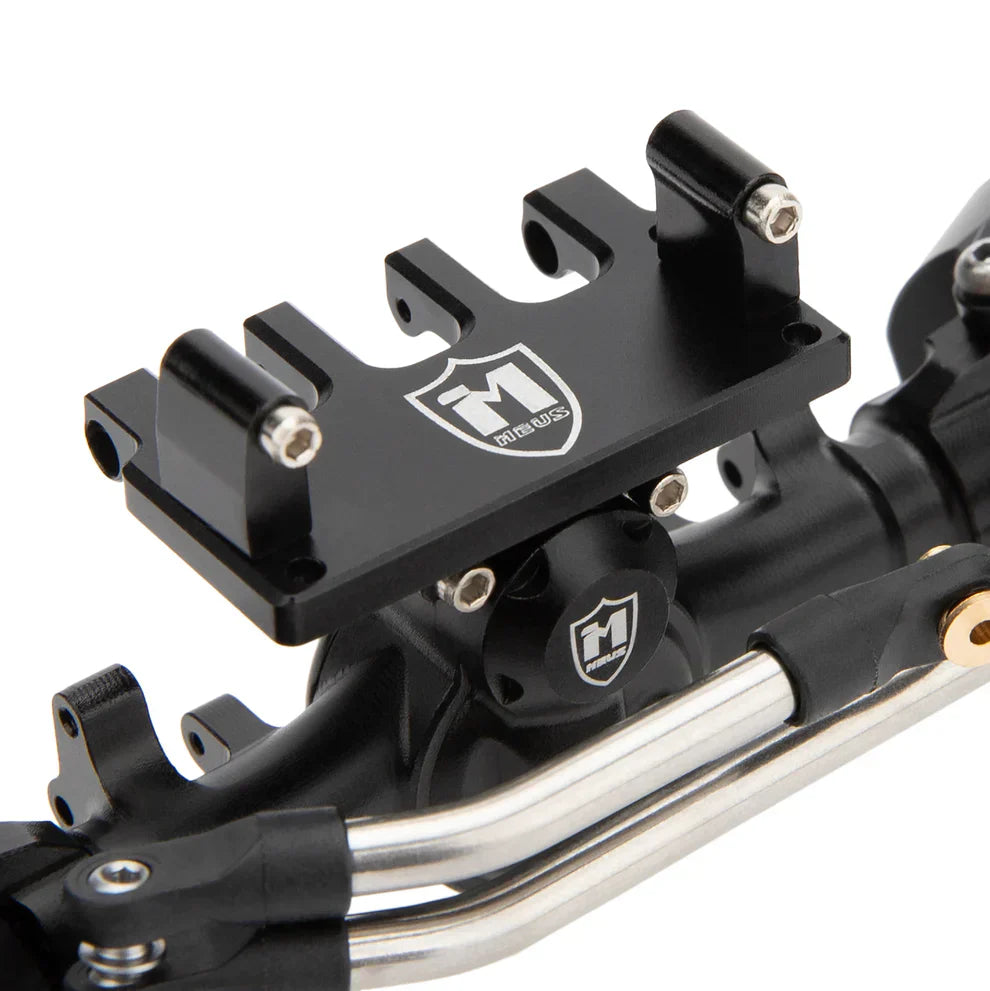

(2) Servo mounts are not compatible with V1 version. V2 changed to original factory mounting hole data.

(3) Steering linkages and CVDs are compatible with both V1 and V2.

(2) Modifed diff cover, screws can be hide properly to prevent the axles from being jammed under certain circumstances.

(3)The rear axle truss mount and the axle housing are integrated into one.

Note:

The steering knuckles of V1 and V2 cannot be used together because the screw hole sizes of the steering knuckle differ. Only the CVD shaft, differential gears, steering links, and servo mount are compatible.

Specifications:

• Axle housing material: Aluminum Alloy
• Steering knuckle material: Brass
• Diff cover material: Brass
• Servo mount material: Aluminum Alloy
• Front axle weight: 83g
• Rear axle weight: 32g

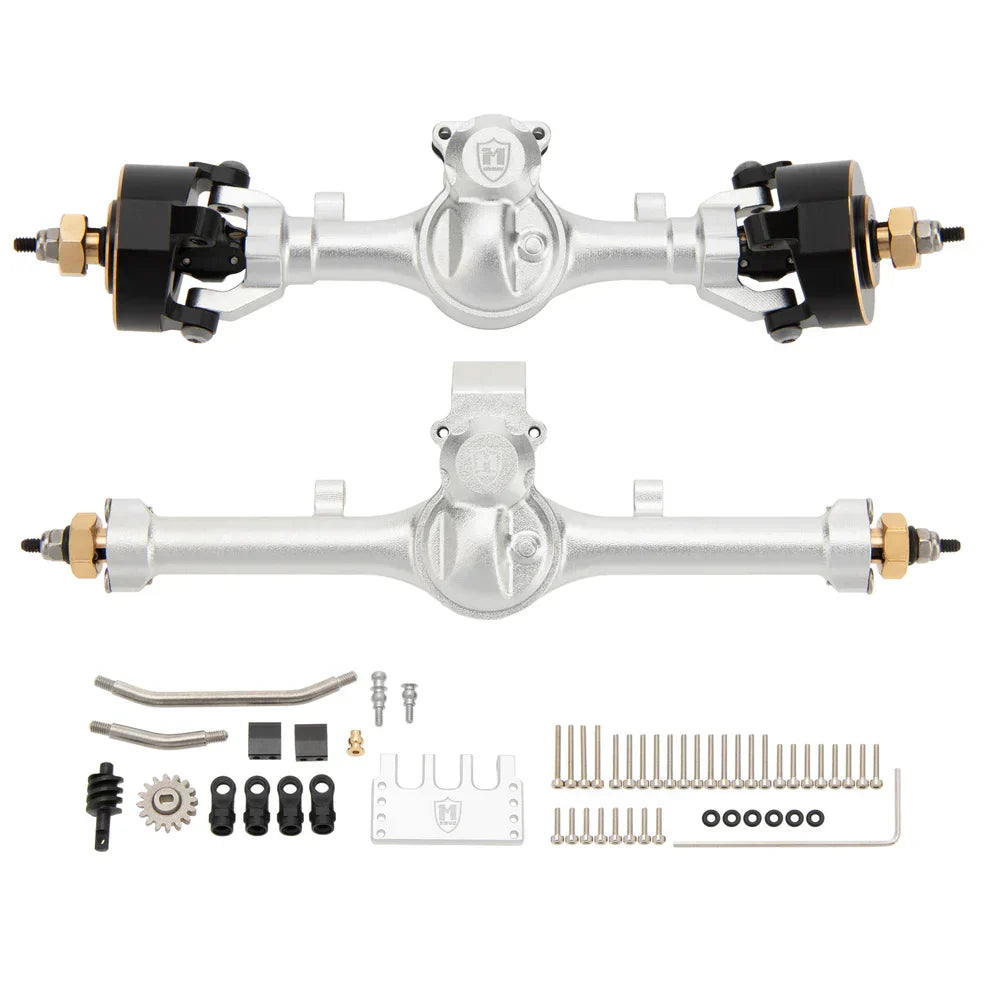

Package List:

• 1 × SCX24 Metal Isokinetic front axle

• 1 × SCX24 Metal rear axle
• 1 × Steering Links
• 1 × 2-16T rear axle underdrive diff gear
• 1 × Servo Mount

• 1 × Screws set and screw tool
• 1 × Rubber O-rings
