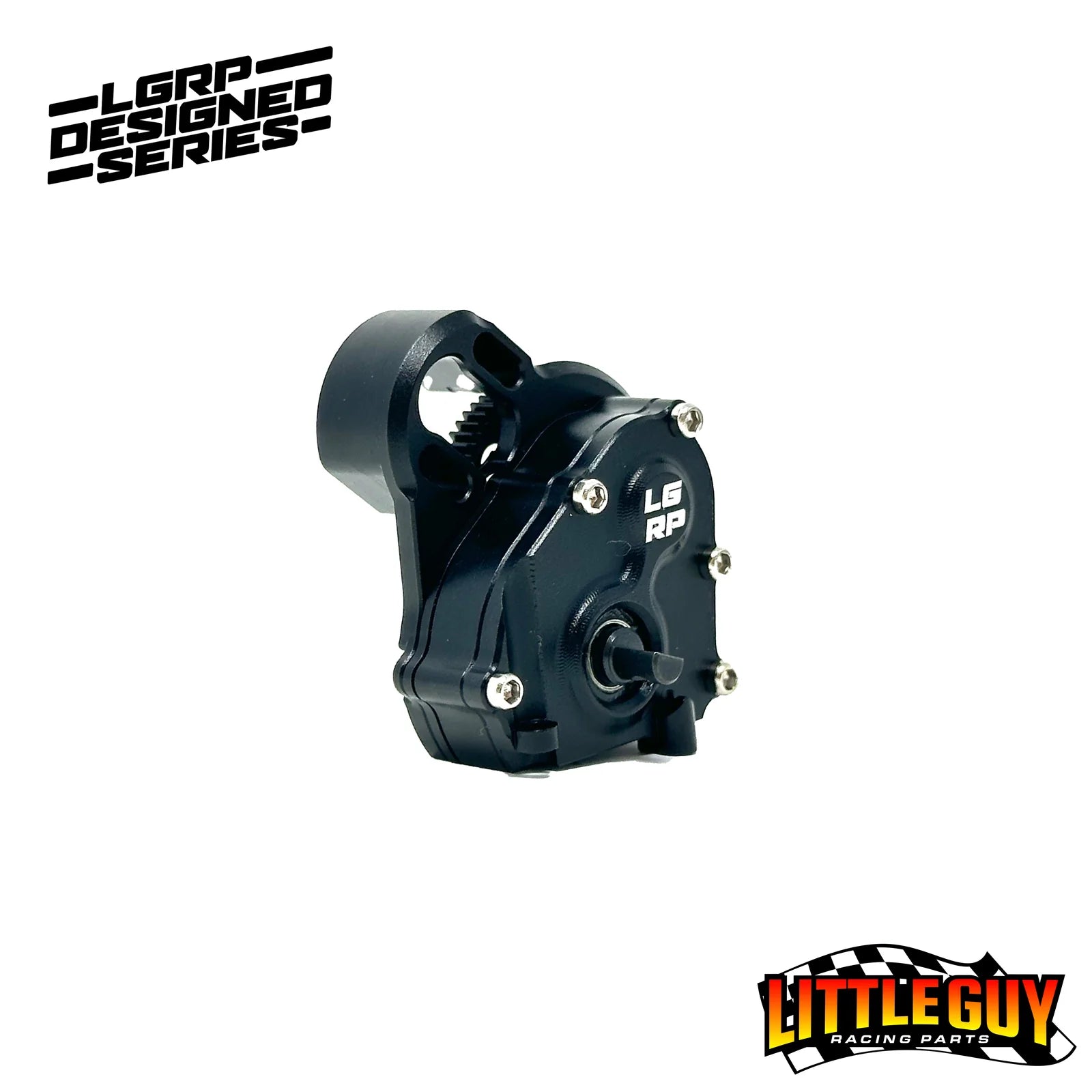

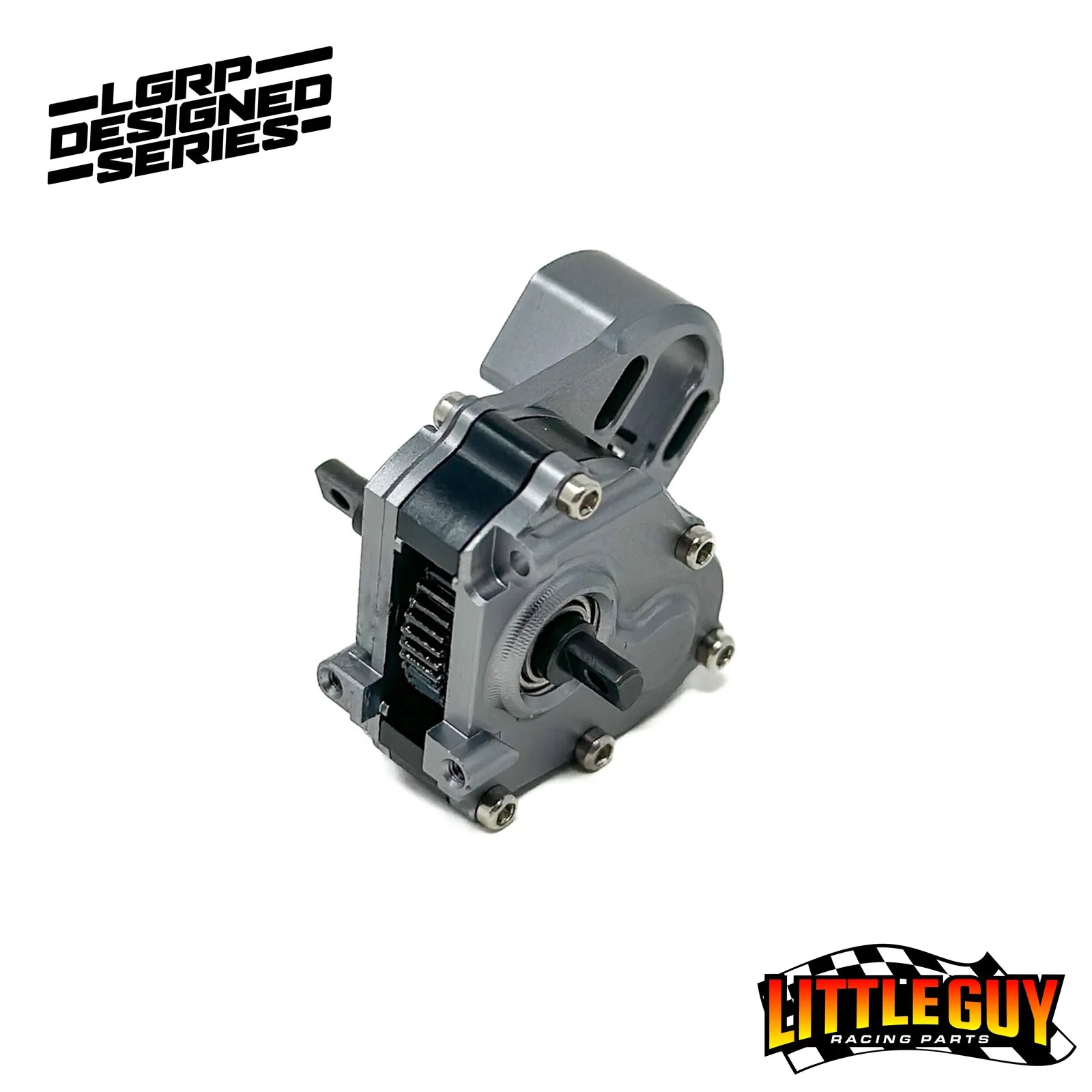

Introducing our In-House Designed Multi-Ratio Transmission, engineered from the ground up to elevate your SCX24™ builds. We identified a need for a transmission that offers multiple gearing options, enabling you to fine-tune your vehicle's performance to match your driving style.

This transmission is compatible with most SCX24® pattern skid plates (check our provided diagram for compatibility without modifications), featuring a compact design that minimizes its footprint while maximizing capabilities. Comparable in size to the factory transmission, it’s a seamless upgrade that enhances your build.

Key Features:

• Gearing Options: Tailor your setup with 5 different gear ratios to suit your specific needs:

  • 3.11:1 (15% Underdriven over stock): Perfect for more bottom-end torque and a smooth low-end power curve.
  • 2.68:1 (Stock SCX24™ Ratio): Ideal for maintaining the stock performance.
  • 2.18:1 (21% Overdriven over stock): Great for a balance of crawling capabilities with extra wheel speed when paired with our Creeper brushless motor.
  • 1.91:1 (34% Overdriven over stock): Our favorite for a mix of bottom-end control and top-end speed with a 2S LiPo.
  • 1.5:1 (54% Overdriven over stock): Designed for go-fast or rock bouncer builds, providing top-end power while still offering decent crawling abilities.

• Compatible Motor Plate: Comes with a 9mm bolt spread motor plate compatible with our Creeper Brushless motor or the Furitek Micro Komodo. For optimal performance, we recommend using our 12T pinion gear.

Important Note: This transmission does not overdrive or underdrive a single output of the transmission; both front and rear outputs will spin at the same speed regardless of the installed ratio. Our "overdriven" and "underdriven" percentages compare the output speed to the stock ratio. For instance, the standard 21% ratio allows outputs to spin 21% faster than stock at full throttle, allowing for precise tuning of front and rear wheel speed.

What's Included:

• (1) Pre-assembled Transmission with a 21% overdrive gear set
• (1) Hardened Steel 55T Spur Gear
• (3) 1.4 x 5mm Mounting Bolts

Disclaimer: Please note that higher overdrive gear sets may put more strain on the motor. While we provide these options, LGRP® cannot be held liable for motor damage or drivetrain breakage resulting from rigorous use.
