MEUS Racing Nylon Isokinetic 3-Section CVD Front and Rear Axles Maximum Steering Angle 52° Wider +5MM for Axial SCX24 Deadbolt C10 JLU Gladiator Bronco 1/24 RC Crawler Upgrade Parts.

Key Features:

• 1. Suitable for Axial SCX24 C10 JLU Gladiator Bronco Deadbolt 1/24 RC Crawler.

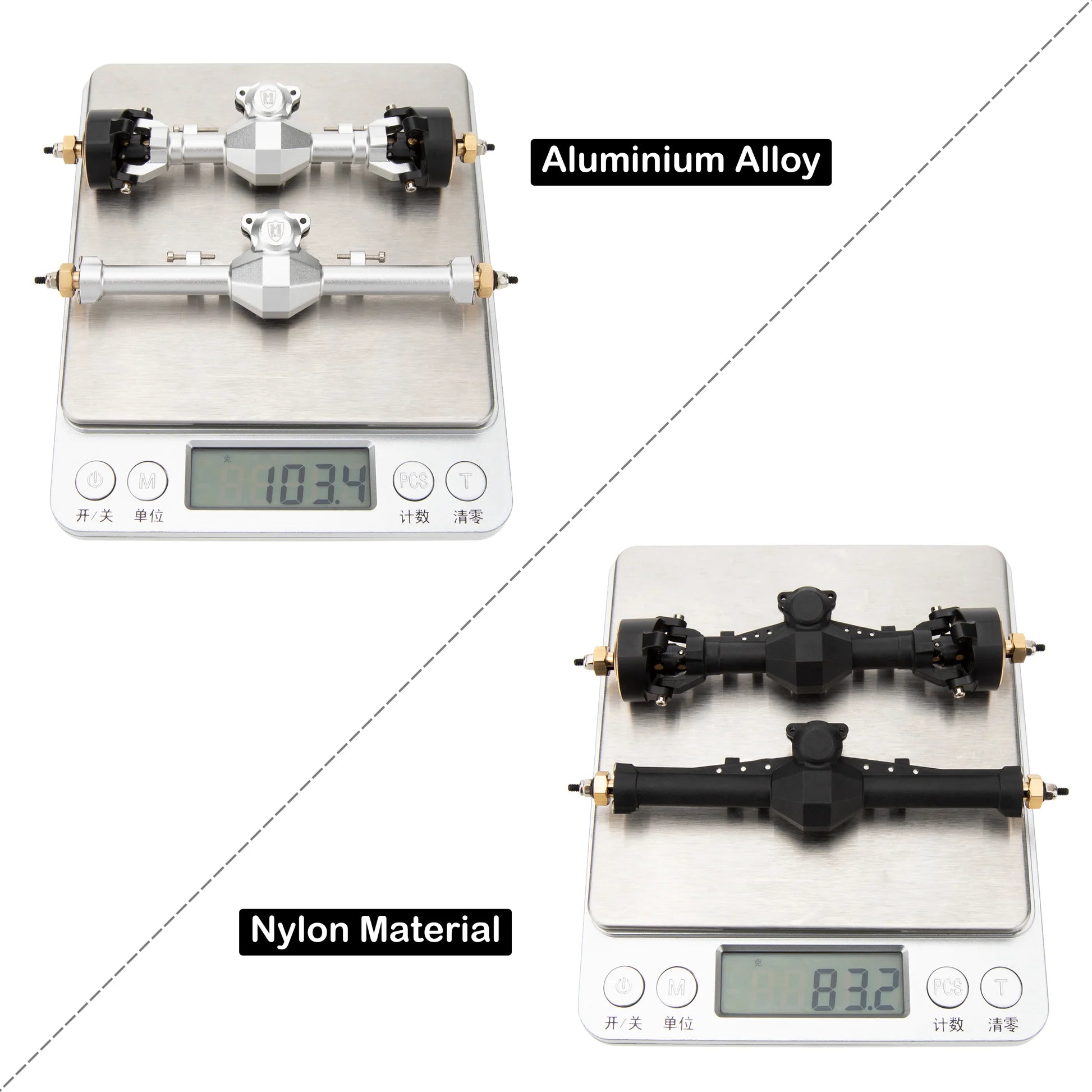

• 2. Front axle 74.8G, rear axle 24.6g.

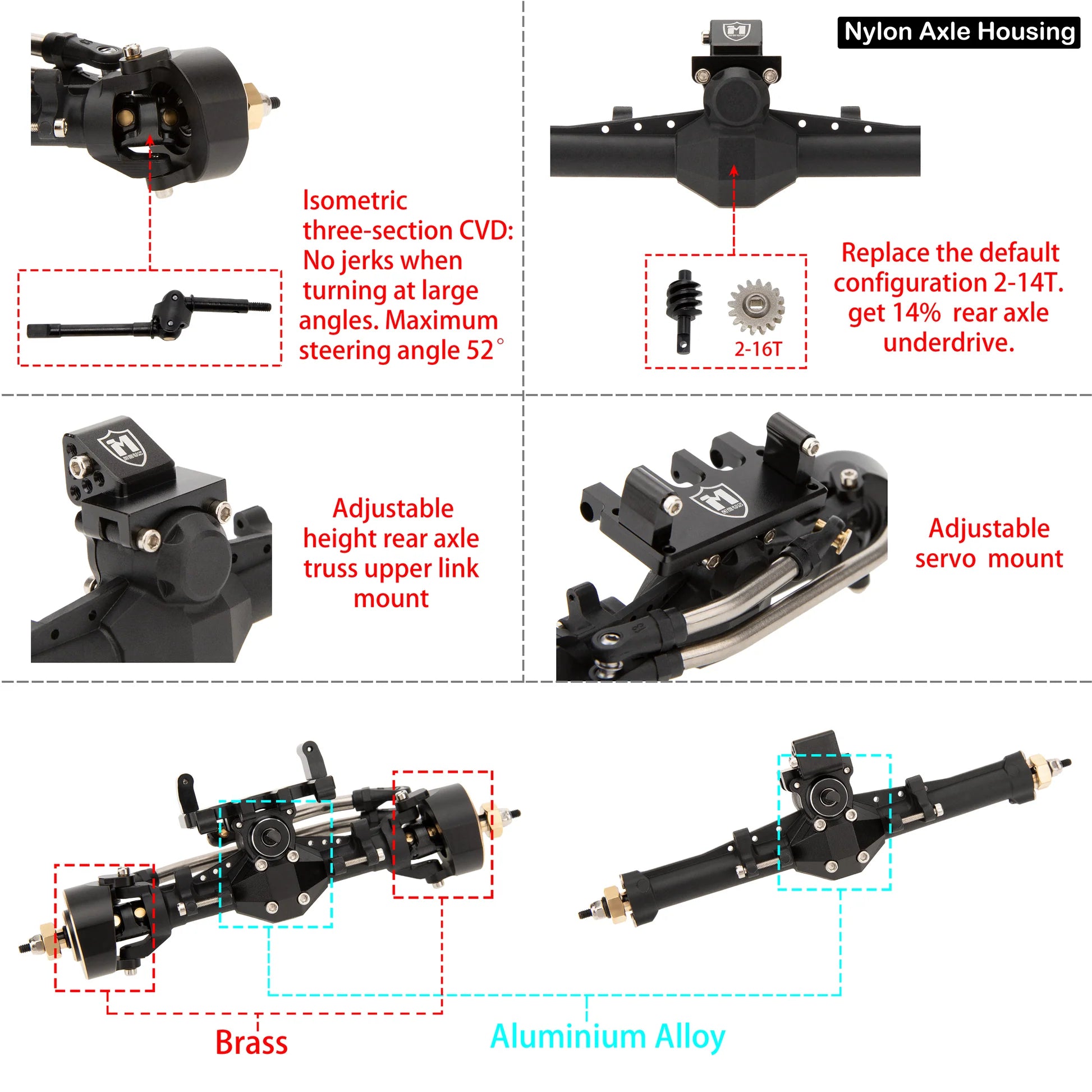

• 3. MEUS Racing's patented 3-Section-CVD structure effectively minimizes the wobbles of front wheels while cornering to level up the steering performance, Furthermore, your little monster will get a max. 4. 52°steering angle which is nearly double the stock axle’s 27°to explore more fun and possibilities with you.

• 5. The axle housing is made of nylon material via injection molding, which provides better flexibility while conquering tough terrains

• 6. It comes with brass steering knuckles for extra weight, other parts e.g. diff gears, diff covers, servo mount, and steering links are made of high-quality aluminum alloy for greater durability, strength, and stability to get competence against fierce driving.

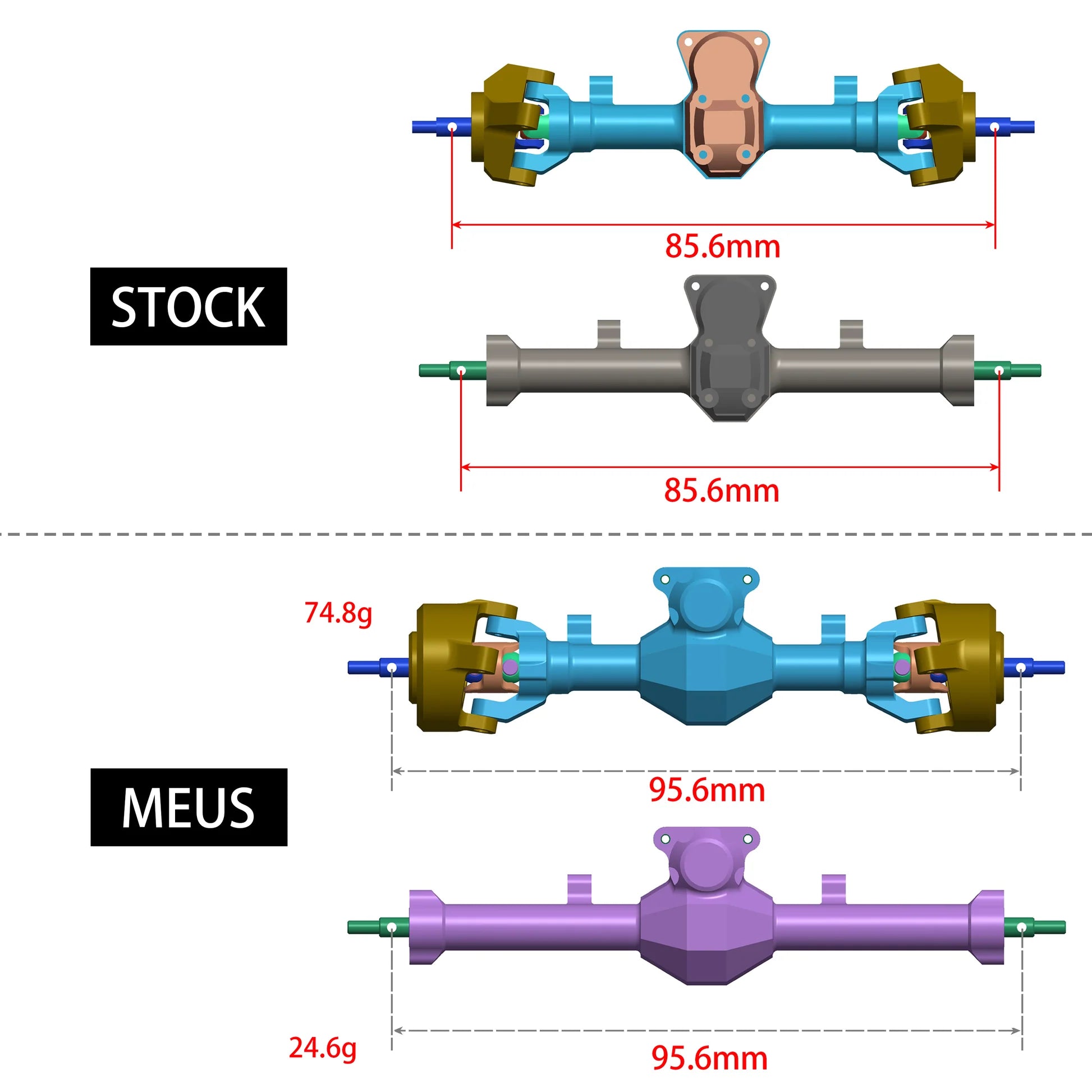

• 7. We set +5mm extended in width to the axles to get more clearance while steering thus allowing more tire selection.

• 8. The front and rear axles are equipped with 2-14T diff gears, 2-16T gears for the rear axle to get underdrive, and faster front wheel speed to prevent the buggy from rolling over while climbing.
• 9. These front axles also work with AX24

  Please note that these nylon ISO axles are not the same as MEUS metal ISO axles, only steering knuckles, CVD and gears are compatible. The servo mount and the rear link riser are the same as stock axles, but they are incompatible with MEUS metal ISO axles.

  Specifications:

  • Material: Plastic & Nylon
  • Steering knuckle material: Brass
  • Front axle Weight: 74.8g
  • Rear axle weight: 24.6g
  • Front & Rear axle diff gear: 2-14T

  4WS axles(2 front axles)

  1. One front axle comes with brass steering knuckles for extra weight, and another front axle comes with aluminum alloy steering knuckles.

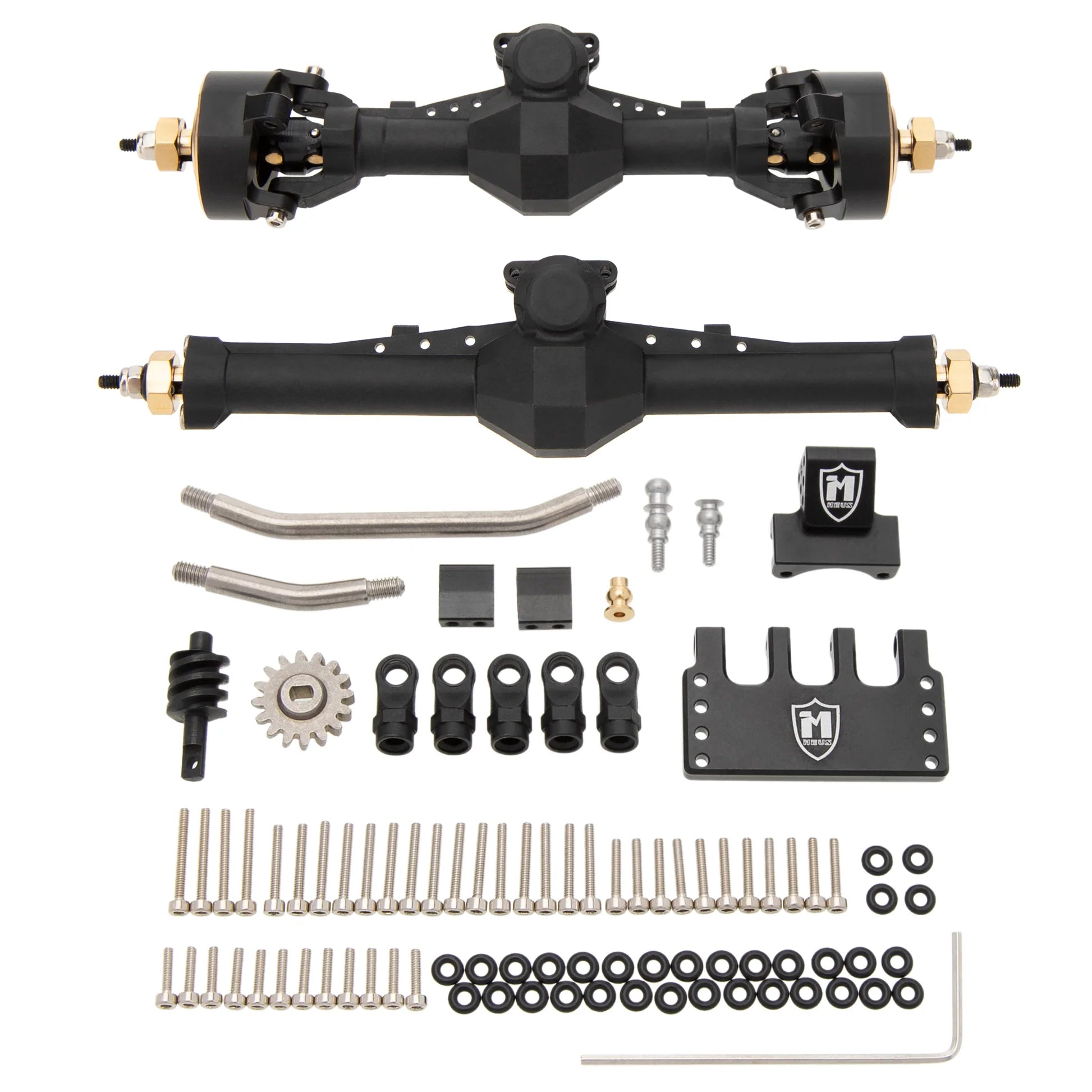

  Package List:

  • 1 × SCX24 Plastic Nylon Isokinetic front axle
  • 1 × SCX24 Plastic Nylon rear axle
  • 1 × Steering Links
  • 1 × 2-16T diff gear
  • 1 × Servo Mount
